Sage Prime for Gases

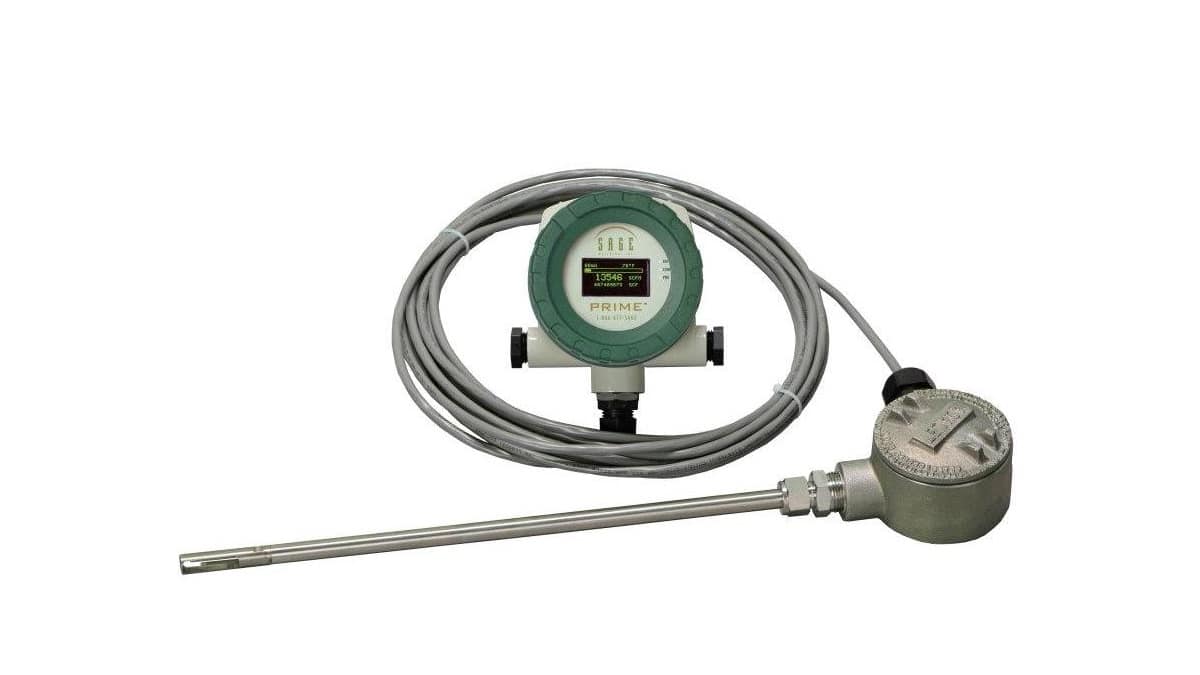

The Sage Prime is our top-selling thermal mass flow meter, which features a bright, high-contrast photo-emissive OLED display. The display clearly states the flow rate, the totalized flow, and temperature and is contained in a robust, yet lightweight, dual-sided NEMA 4 enclosure. The flow rate is also graphically displayed using a horizontal bar graph, which shows the percentage of full-scale flow rate. Entirely separated from the electronics in the back is a large, easy-to-access compartment, which has well-marked terminals that permit easy wiring. When powered by 24 VDC (optionally, 12 VDC, or 115/230 VAC), the meter draws less than 2.5 watts, likely making the Prime the most energy-efficient thermal mass flow meter (Draws less than 2.5 watts when under 100 mA at 24 VDC).
Sage Prime is CE approved, and CSA, UL approved for Hazardous Service1 (see “Approvals” under the “Technology” tab on the website). For ATEX Zone I approvals, request Sage Rio Flyer (SIX Series).
Continuous Diagnostics & Field Reconfigurability
Sage Prime has continuous diagnostic as the raw calibration milliwatts (mW) is always in the upper left-hand corner on the meter’s display. At any time, you may check this reading at a “No Flow” (0 SCFM) condition, and compare its reading to the original reported “No Flow” value (found on the meter’s Certiﬁcate of Conformance and the flow meter’s data tag). This in-situ diagnostic verifies that the meter is in calibration, and its sensor is clean even without inspection. This procedure validates that the meter is operating correctly, veriﬁes that there is no shift or drift, and may eliminate the need for annual factory calibration.
Although the Sage Prime is fully conﬁgured upon shipment for the pipe and process conditions requested by each user, if changes are needed, INSIGHT software is optionally available for ﬁeld reconﬁguration.
In addition to the features and benefits discussed, there are others worthy of mention.
Feature-Benefits of Thermal Mass Flow Meters
The following are generally considered primary features and benefits of thermal mass flow meters.
- Direct mass flow – No need for separate temperature or pressure transmitters
- High accuracy and repeatability – Precision measurement and extraordinary repeatability
- Turndown of 100 to 1 and resolution as much as 1000 to 1
- Low-end sensitivity – Measures as low as 5 SFPM (e.g., 1 SCFM in a 6″ pipe)
- Negligible pressure drop – Does not impede the ﬂow or waste energy
- No moving parts – Eliminates costly bearing replacements, and prevents undetected accuracy shifts
- Dirt insensitive – Provides sustained performance
- Ease of installation and convenient mounting hardware
Additional Features Specific to the Sage Prime
In addition to the primary features of the product, and those discussed, Sage Prime offers the following additional features:
- A compact enclosure; only 4.6″ diameter by 4.5″ deep (DC Models)
- Photocell activated screen saver to extend display life
- Proprietary digital sensor drive circuit provides enhanced signal stability and unaffected by process temperature & pressure changes
- Rugged, user-friendly packaging with easy terminal access
- Option for solar energy use (12 VDC models)
- Flow conditioning built into in-line ﬂow meters (1/2″ and up)
- Captive Flow Conditioners for Insertion meter applications (if required)
This article is republished, with permission from Sage Metering.
Sage Metering is your source for monitoring and controlling the gas mass flow in your manufacturing process, building management system or environmental application. Our high performance, NIST Traceable, Thermal Mass Flow Meters will help increase productivity, reduce energy costs, maximize product yields, and/or help reduce environmental insult. Sage ...
