Pressure Control and Measurement: how it works, key numbers and troubleshooting
Fundamentals
Gauge, absolute and differential
Three references, and mixing them up is the most common error on a datasheet. Gauge pressure is measured against the atmosphere and is what a pump discharge or a vessel normally quotes. Absolute pressure is measured against vacuum and is what vacuum systems, boiling points and gas calculations need. Differential is the difference between two taps and is what flow elements, filters and level in closed vessels rely on.
How the sensor works
Nearly all industrial transmitters put a thin diaphragm between the process and a measuring element. A piezoresistive cell reads the strain as a resistance change and is compact, fast and cheap; a capacitive cell reads the movement between two plates and is more stable over years and over temperature. Both are protected by an isolating diaphragm and a fill fluid, and both live or die by how that diaphragm is treated.

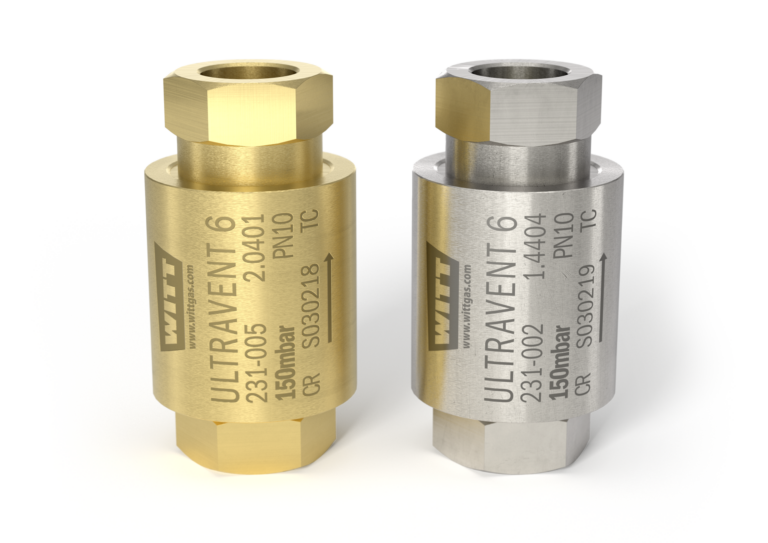

Regulators and relief
Control is not the same as protection. A regulator holds a downstream pressure by throttling itself, quietly and without a control loop, which is what instrument air, gas blanketing and utility lines use. A relief valve or a rupture disc does nothing at all until the set pressure is reached and then opens fully. Every vessel that can be blocked in needs the second one, and no amount of control logic replaces it.
Impulse lines and seals
The transmitter is usually right; the impulse line is usually not. Condensate in a gas leg, gas in a liquid leg, a blocked tap or a frozen line all shift the reading without any alarm. Chemical seals with capillaries put the diaphragm directly on the process and remove the line altogether, at the cost of a temperature effect from the fill fluid and a long list of installation rules about height and capillary length.
Pressure as a diagnostic
Pressure is the cheapest diagnostic in the plant. Differential across a filter tells you when to change it, across a heat exchanger when to clean it, and across a pump whether the impeller still delivers head. Trending three differential readings usually finds more problems than a full vibration programme, because the instruments are already there.
Key parameters
| Parameter | Typical range | Rule of thumb |
|---|---|---|
| Turndown of a transmitter | Calibrate within 10:1 of the upper range limit | A cell used far below its range multiplies its own drift and temperature error |
| Accuracy | 0.075 to 0.2 % of span for a process transmitter | Add the ambient temperature effect; over a year that often exceeds the base accuracy |
| Overpressure limit | Two to ten times the upper range value | Size on the worst upset, including pump shut-off head and hydraulic shock |
| Diaphragm material | 316L as standard, Hastelloy or tantalum for aggressive duty | The wetted diaphragm is thin; corrosion that a pipe shrugs off will hole it |
| Relief valve set pressure | At or below the design pressure of the vessel | Accumulation of 10 % is normal; check the vessel can take set plus accumulation |
| Regulator droop | 5 to 20 % between no flow and full flow | Size on the flow range, not on the maximum; an oversized regulator hunts |
| Capillary length, chemical seal | Under 3 m, matched on both legs | Long or unequal capillaries turn ambient temperature into a false differential |
| Response time | 100 to 500 ms including damping | Damping smooths the trend and hides the surge you were trying to catch |
Troubleshooting
| Symptom | Likely causes | What to do |
|---|---|---|
| Reading drifts up over months | Zero shift from overpressure, mounting strain, or a slow change in the fill fluid | Vent both sides and check the zero at atmosphere; re-zero after any overpressure event |
| Differential reading is negative or nonsense | Impulse legs swapped, condensate in the dry leg, or gas trapped in a wet leg | Blow through both legs, confirm which tap is high, and slope the lines so they drain the right way |
| Signal is noisy on a pump discharge | Pulsation from a positive displacement pump or a partly closed valve nearby | Add a snubber or a small amount of damping, and move the tap away from the valve or the elbow |
| Transmitter reads correctly cold, wrong when hot | Ambient temperature effect on a chemical seal, unmatched capillaries, or direct sun on one leg | Shade both capillaries equally, keep them the same length, and check the temperature coefficient in the datasheet |
| Relief valve leaks below set pressure | Operating pressure too close to the set point, seat damage, or back pressure from a shared header | Keep the normal operating pressure at 90 % of set or below, lap or renew the seat, and check the header design |
| Regulator hunts or sings | Oversized for the actual flow, or the downstream volume is too small to damp it | Resize on the real flow range and add volume or a restrictor downstream |
| Filter differential rises the moment it is cleaned | Element fitted the wrong way round, bypass valve left open, or a blocked impulse tap rather than a blocked filter | Confirm the taps read the same with the filter open, then check the element and the bypass |
