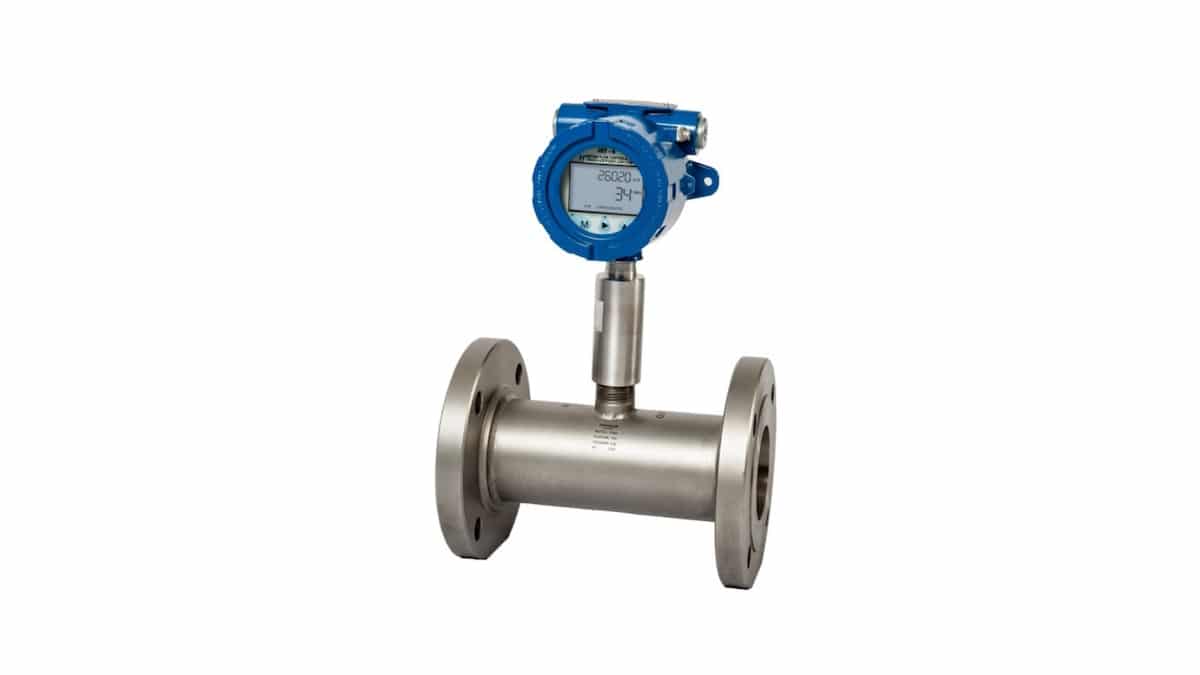

The HIT-4G provides temperature and pressure compensated gas flow measurement and also offers features such as Dual Totalizers, Modbus® and Data Logging. Featuring a 6-digit rate display and separate 8-digit resettable and non-resettable flow totalizers, the HIT-4G is configurable for 4-20 mA loop power or DC power.
Several enclosure options are available including the explosion-proof enclosure (North America, ATEX & IEX) which is available in a powder coated aluminum or stainless steel option for maximum flexibility to meet the harshest of installation conditions. Other enclosure options include Nema 4X and panel mount.
Included is a magnetic pointer that enables operation of all front control panel functions without having to remove the enclosure cover. Data logs are part of the unit menu and are also accessible without opening the enclosure. 100 of the latest data logs can be accessed and read from the front panel with the rest accessible via the Modbus port. The multi-drop Modbus® RS-485 serial port allows for two-way communication while in operation and configuration with remote devices. The NEMA 4X enclosure offers options for local Modbus access ports via USB port or hardwired access through strain relief for data log retrieval and configuration of the unit.
The HIT-4G is packed with additional user friendly features including 20-point linearization, dual set point alarm output configurable for rate or total and a wide range of engineering unit display icons.
The HIT-4G is the second in a family of new generation displays utilizing the same platform. The HIT-4G is paving the way to improved flexibility and reliability for your flow measurement needs. Contact us today at www.hofferflow.com for more information on Hoffer flow meters and the HIT-4 Series.
