Reciprocated Action Solves Tough Heat Exchange Challenges

Reciprocated Action Solves Tough Heat Exchange Challenges
Scraped surface heat exchangers have been used for difficult heat transfer applications involving viscous fluids or where fouling is an issue, such as evaporation processes. The most common type of scraped surface heat exchanger (SSHE) uses a rotating shaft with blades or augers which scrape the surface of the tube. The popular HRS R Series is based on this approach. However, the design is not optimal for every situation, and so HRS developed the Unicus Series of reciprocating scraped surface heat exchangers.

The HRS Unicus Series is specifically designed to provide the improved heat transfer of a traditional SSHE, but with a gentle action to preserve the quality and integrity of delicate food products such as cheese, yoghurt, ice cream, meat paste, and products containing whole pieces of fruits or vegetables. Over the years, a number of different scraper designs have been developed, meaning that every application, from processing curds to heating sauce or pasteurising fruit compotes can be handled in the most efficient yet gentle way possible. Other applications where the Unicus Series has been beneficial include handling meat slurry and mince, and processing yeast-malt extracts.

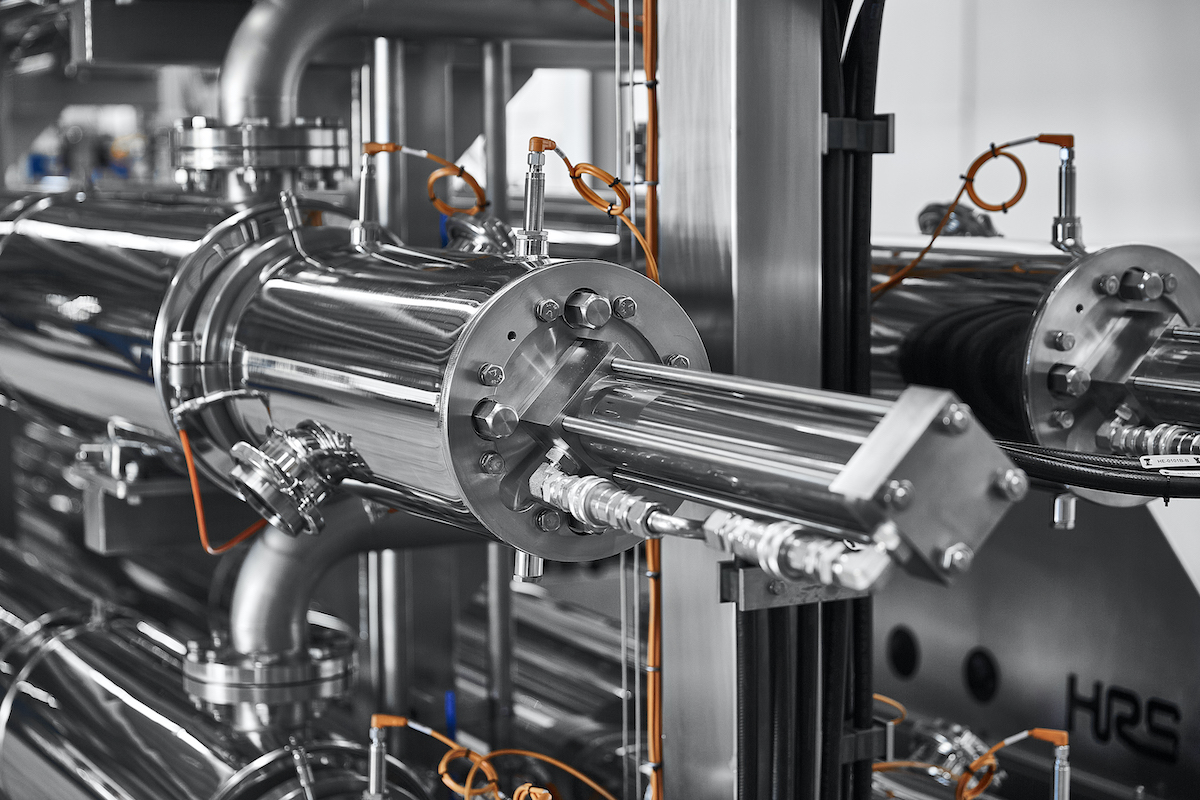

The hygienic design uses a patented stainless-steel scraping mechanism which moved hydraulically back and forth within each interior tube. The movement performs two key functions: it minimises potential fouling by keeping the tube wall clean, and also creates turbulence within the material. Together, these actions increase the rate of heat transfer in the material, creating a highly efficient process which is ideal for viscous and high fouling materials.

Since they are controlled separately, the speed of the scrapers can be optimised for a particular product being processed, so that materials which are susceptible to shear stress or pressure damage (such as creams and custards) can be handled delicately to prevent damage while still providing high levels of heat transfer. The Unicus Series has proven particularly useful in handling viscous food products where texture and consistency are important attributes. For example, some creams or sauces may shear when subjected to excess pressure, making them unusable. The Unicus means that effective heat transfer can be carried out at low pressures which overcomes these problems.

Each Unicus SSHE consists of three elements: a hydraulic cylinder and power pack (although in smaller units a pneumatic cylinder can be supplied instead), a separation chamber to ensure hygiene and preserve product separation from the motor, and the heat exchanger itself. The heat exchanger consists of a number of tubes, each of which contains a stainless-steel rod to which the appropriate scraping elements are fitted. Using a range of food-safe materials including Teflon and PEEK (polyether ether ketone), these provide different internal geometry setups according to the application, such as 120° scrapers for large particulates and 360° scrapers for viscous fluids without particulates.

The Unicus Series is also fully scalable by increasing the shell diameter and adding more interior tubes from a single tube up to 80 in one shell. A key feature is the specially designed seals which separate the inner tube from the separation chamber,  tailored to the product application. These seals prevent leakage of the product and ensure internal and external hygiene. A standard range of models for food processing provide heat transfer areas from 0.7 to 10 m2, while larger models up to 120 m2 can be made for specific uses.

One area where the Unicus Series excels is in evaporation applications, where the prevention of fouling is particularly important. HRS has a specific version of the Unicus for use in evaporation units where volume reduction of the material is essential. The scraping action keeps the heat transfer surfaces clean so that Unicus evaporators can concentrate materials to a level that is unattainable using traditional technologies. Unicus evaporators can be used in multi-effect setups or in combination with mechanical vapour recompression.
