New Eclipse® Model 706 GWR Adapter For Ease-Of-Use In Troubleshooting

Two Magnetrol Eclipse Guided Wave Radar (GWR) Model 705s were measuring interface in a desalter at a refinery.

Operation of the interface level in the desalter is critical at any refinery.  Inorganic chlorides, suspended solids, and trace metals found in untreated crude must be removed by chemical or electrostatic desalting.  This reduces the risk of acid corrosion, plugging, fouling and catalyst poisoning in downstream units.  Measurement of the oil-water interface in the desalter is crucial in separating the cleansed crude from contaminants.

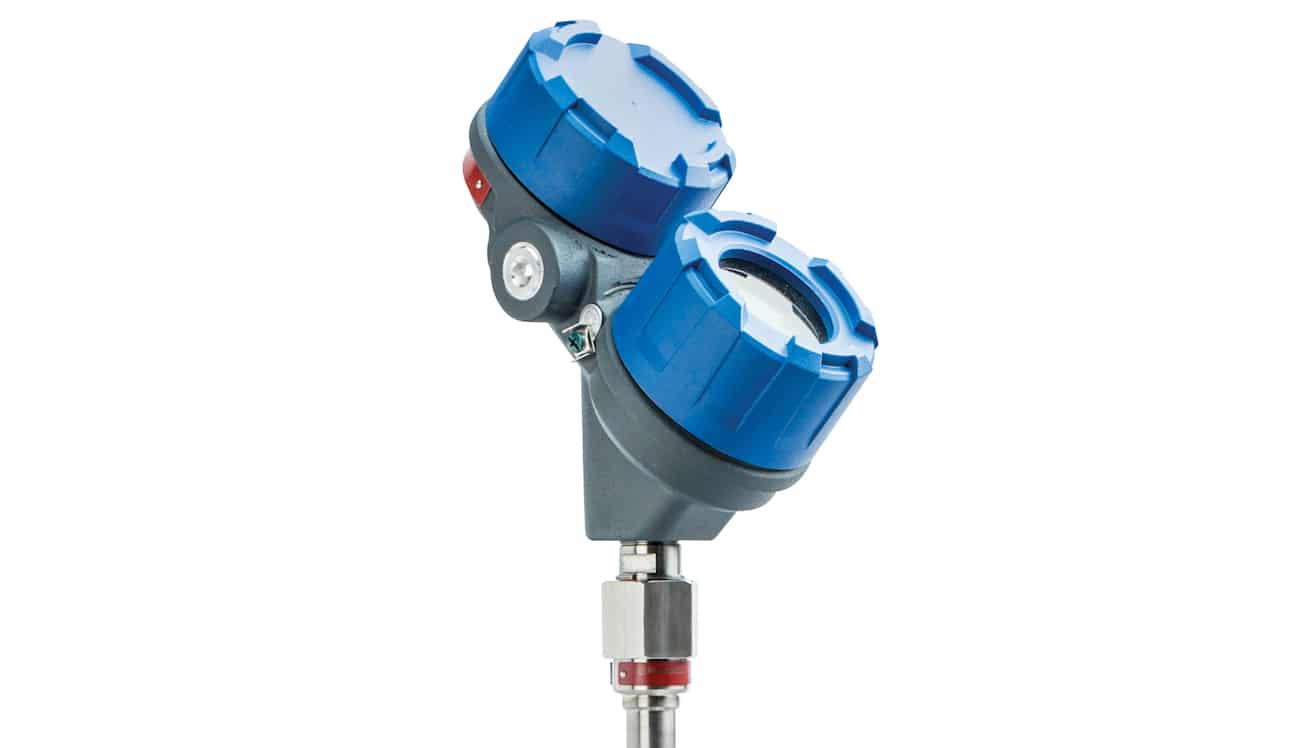

NEW MODEL 706 ADAPTER
NEW MODEL 706 ADAPTER

The customer had doubt as to whether the interface measurement was correct, but the devices had been installed for a decade under different management.  One of the GWRs was installed in a flooded chamber while the other was directly inserted into the vessel.  The integral electronics and cumbersome DTM made the original 705s difficult to troubleshoot, which opened an opportunity to utilize the new Model 706 Adapter.  The new Model 706 Adapter allows existing Model 705 probes to be retrofitted with the Model 706 transmitter without breaking the process seal, gaining the best-in-class GWR performance that comes along with the Model 706 including the highest Signal-to-Noise (SNR) ratio in the market.  High SNR is particularly helpful in low dielectric liquids often found in refineries.

Aside from the increased performance, the technician could now use the latest Model 706 DTM for troubleshooting.  The main DTM features emphasized by the technician onsite were:

  1. The capability, on one screen, to view not only the echo curve itself but also the operational conditions of the transmitter along with the configurable parameters.  You could then change parameters and refresh the curve to see immediate results without going into multiple screens.
  2. Data logging capabilities where you can capture all of the data associated with the last nine events, which include configuration parameters, echo curve, echo curve history and event history.

Due to the dedication of the technician and the new Model 706 Adapter, this refinery is now able to effectively measure the interface level as well as track a potential build-up area on the probe.  Coating and build-up on probes may create interface measurement errors. The Model 706 has the capability to monitor build-up as a percent of level threshold or as a rate.  Meaning the user could potentially track the build-up percentage or rate through a HART variable to trigger a flushing process or for timely maintenance / cleaning intervals. This prevents improper operation of the desalter and potential unplanned downtime.
