The New Mathematics of Submersible Pumps

19 Aug 2020  |
Canned motor pump technology provides significant advantages and often constitutes a low-priced alternative to conventionally sealed pumps and magnetically coupled installations with external drive, for example due to the omission of long shafts or complex cooling and lubrication systems for mechanical seals.

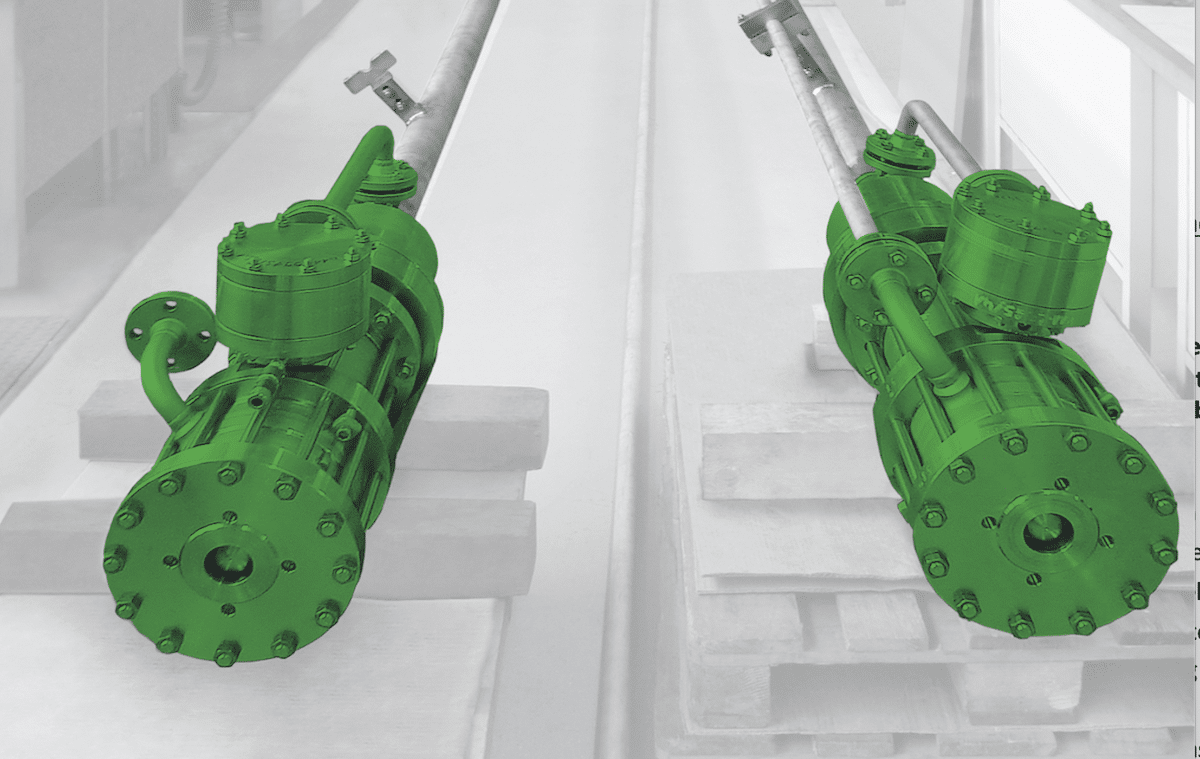

As a replacement to conventional submersible pumps, HERMETIC-Pumpen GmbH supplied two 8-stage, sealless canned motor pumps of the TCAM 30/4+4 series. The distinctive feature of the transformation was the customized adaptation of the pumps to the existing plant and its vessels. The pumps were designed for easy installation in the existing tank (with a diameter of 500 mm). The customer, a Swiss fine chemicals company, thus saves the costly, time-consuming conversion of the existing systems in its production plant.

The supplied submersible pumps are the longest pumps that HERMETIC has ever produced. With an immersion depth of more than 15 meters – and a pump shaft of only 1 meter – the challenges ultimately lay in adapting to the operator’s existing plant as well as in the internal and external logistics. At the customer’s request, the pumps were produced in full length and therefore special transport was required for delivery.

The submersible pumps, in tandem design, convey the medium [NH3] at a temperature of -33°C. The delivery head [H] is 260 m at a flow rate [Q] of 12 m³/h. The pump units are designed for a nominal pressure of 40 bar and are suitable for operation with frequency converters [30-60 Hz].

The special features of the technology

Thanks to the hermetically sealed design of the drive unit, which consists of hydraulic system and motor, it can be completely immersed in the vessel or tank. Only the discharge pipe and the electrical connection are routed through the tank cover via the manhole plate and out of the vessel. This provides the operator with significant advantages:

The fluid-lubricated slide bearings of the canned motor guide a short shaft on which the rotating parts of the motor and the hydraulic system are combined. The “ZART ®” (Zero Axial and Radial Thrust) technology from HERMETIC ensures non-contact, wear-free operation of the rotor unit. Some installations operate wear-free for many years with no maintenance requirements. Customer studies show that the MTBF times of this technology are many times longer than those of a conventional installation.

Monitoring the condition of submersible pumps is much more difficult than monitoring the condition of units that are located outside. The HERMETIC canned motor pump provides a monitoring concept that oversees the safe operation of the pump via installed sensors. In addition to operating temperature, liquid level and motor load, the specially developed MAP system can also be incorporated. This system continuously monitors the position of the rotor and is therefore a reliable indicator of unintended operating states and wear.

Canned motor pumps excel in cryogenic applications. The efficiency of electric motors decreases with rising temperatures. The canned motor is cooled and kept at a low temperature by the pumped medium, which makes it particularly efficient. Since no dynamic seals and conventional bearings are used, the hermetic pumps provide enhanced reliability and durability in this application.

In the past decades, the canned motor has proven its value as a low-maintenance, reliable drive for submersible pumps in the chemical and petrochemical industry. Equipped with state-of-the-art monitoring devices and thanks to its compact design, this technology often provides a simple, cost-effective and very reliable alternative to conventional shaft seals or magnetically coupled submersible pump versions.

Profile of HERMETIC-Pumpen GmbH

HERMETIC-Pumpen GmbH, based in the German town of Gundelfingen (near Freiburg), is a world leader in sealless pumps. The company employs around 440 people in Germany. HERMETIC pumps are used in the chemical industry, as well as in the oil and gas industries. They are also used in the industrial refrigeration industry and in solar thermal power plants. To date, over 280,000 HERMETIC pumps have been installed worldwide for the most demanding pumping applications.
