In industrial applications, COâ‚‚ is used in both its liquid and supercritical states.
A Wide Range of Applications for Carbon Dioxide (CO2)
Thanks to its excellent thermodynamic properties, CO2 is also used as a refrigerant in industry, commerce and automotive engineering. At the same time, the avoidance, reuse, storage and transport of CO2 are becoming increasingly important within the framework of Capture, Utilisation and Storage (CCUS) concepts.
CO2 in Refrigeration and CCUS Applications
CO2 is becoming increasingly important as a natural refrigerant and for Carbon Capture, Utilisation and Storage (CCUS). Find out more about its properties, areas of application and technical requirements. Download the white paper

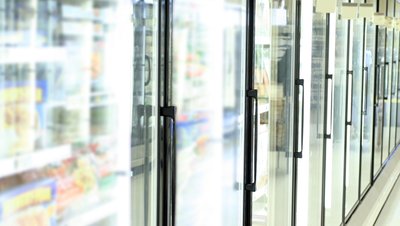

CO2-Based Supermarket Refrigeration
In high-pressure CO2 systems for supermarket refrigeration, pressure resistance, cavitation resistance and absolute leak-tightness are particularly crucial. HERMETIC meets these requirements with hermetically sealed Canned Motor Pumps, ensuring safe and long-lasting operation even under demanding operating conditions.
Application: CO2
- RequirementMedium: CO2
Delivery rate: 4 m³/h
Pumping head: 30 m
Operating temperature: –10 °C
Advantages: Leak-free, durable - HERMETIC SolutionsPump: CAMH 2/4
Motor: AGX 3.0
Pump type: Hermetically sealed canned motor pump, multi-stage design
Ex protection: No requirement
Speciality: High pump capacity, explosion protection
Optional: Optimal efficiency thanks to frequency control

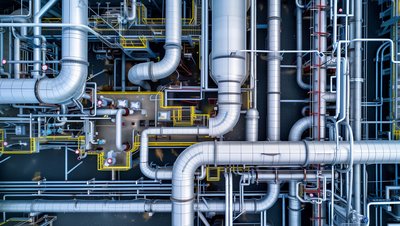

Carbon Capture and Storage (CCS)
In Carbon Capture and Storage (CCS), captured CO2 is liquefied after processing, stored temporarily and prepared for transport. This requires pumping solutions that ensure leak-free and reliable operation even at low temperatures, high vapour pressures and high pump capacities.
Application: CO2
- RequirementMedium: CO2
Delivery rate: 400 m³/h
Pumping head: 112 m
Operating temperature: –30.6 °C
Advantages: Leak-free, durable - HERMETIC SolutionsPump: CAMFTVm 83/3
Motor: N85z-4 C2
Pump type: Hermetically sealed canned motor pump, multi-stage design, vertical
Ex protection: No requirement
Speciality: High pump capacity
Optional: Vertical installation for high vapour pressures and optimised degassing
More on Carbon Capture and Storage
Can’t Find Your Application Here?
We work with you to develop a suitable pumping solution for your specific process requirements. Thanks to our many years of experience in handling critical media, we can also produce bespoke designs and specialised solutions.
Get in Touch With Our Experts
Are you planning a CO2 application, or do you have any questions about conveying technology, design or possible applications? Please contact our team of experts. We’d be happy to advise you. Make an enquiry now
