New DIN Wireless Gateway from SignalFire Supports Network Connectivity of Wireless and Wired Sensors

11 Sep 2019  |

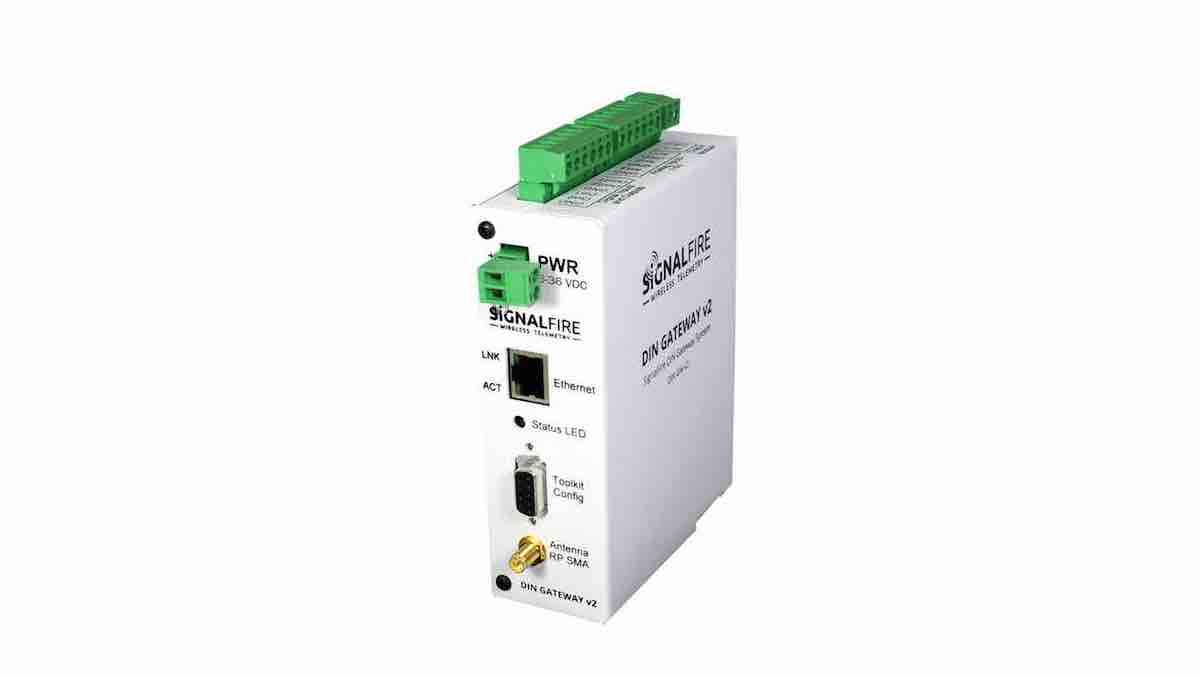

SignalFire Wireless Telemetry introduces the new DIN Gateway V2 – a 900 mHz wireless gateway with an integrated I/O capability for easy network connectivity of wireless and wired sensors, integrated Ethernet and built-in automation.

This DIN Gateway V2 features 2 digital Inputs, 2 digital outputs, 3 analog inputs and an optional gateway output module with 8 analog and 2 digital outputs. The 3 analog inputs are useable for any measurement or control device while the digital outputs are useable for annunciation or basic on/off applications. This edge computing type capability in the wireless gateway enables discrete automation functionality.

This enhanced gateway, designed for Class 1 Division 2 Groups C and D locations, supports wireless configuration up to 240 remote nodes at 3+ mile typical range and interfaces via RS-232 Modbus RTU or Modbus-TCP (Ethernet). This gateway enables wireless configuration of remote nodes and HART® devices via PACTware® or Radar Master and automatically configures as a star or mesh network.

The compact DIN mount gateway features low power consumption, integrated high-gain 5dB omnidirectional antenna and 500 mW radio operating at 902-928 MHz license-free ISM band. The optional expansion output module provides an additional 8 analog outputs and 2 digital outputs. The DIN Gateway V2 is now available for immediate shipment.

“The new DIN Gateway V2 redefines the functionality of a wireless gateway as it integrates automation and integrated I/O. This innovative gateway adds three capabilities unique to a typical gateway; ability to accept wireless and direct wired inputs, automation including 2DI, 2DO and 3AI plus and an expansion port for the optional output module providing 8 analog outputs and 2 digital outputs into a DIN mounted package,” says Sandro Esposito, VP Sales and Marketing.
