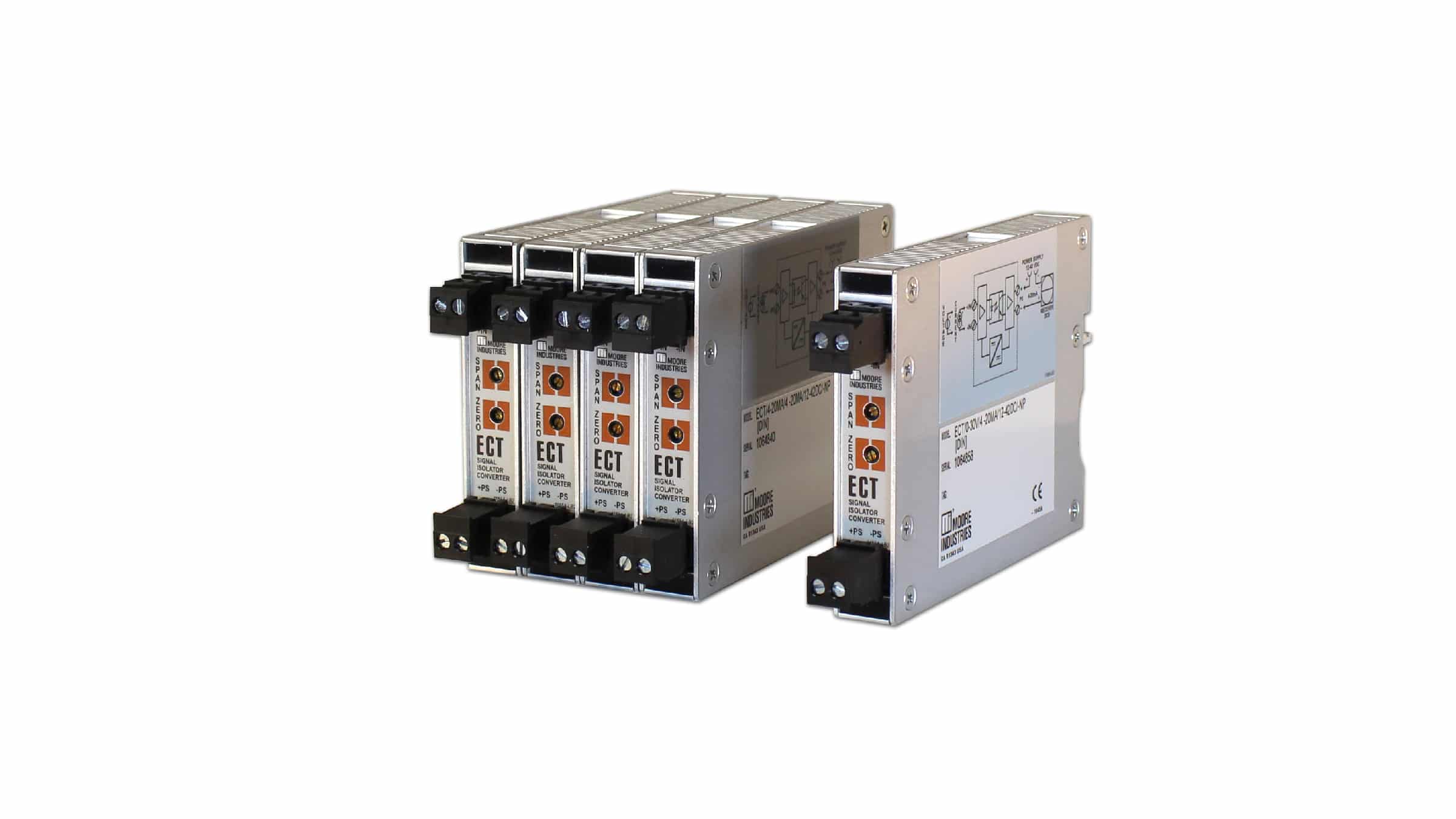

The thinner 15mm width has the sameGeneral and Hazardous area approvals, RFI/EMI protection and -40°C to 85°C operating temperature range as the rest of the ECT family of isolators, which means it can be installed in hazardous locations and does not require installation in cooled or climate controlled environments, making it perfect for more extreme locations. The narrow 15mm ECT-DIN signal isolator and converter with 4-20mA, 1-5V and 0-10V inputs and 4-20mA output allows more isolators to fit in cabinets and field enclosures where installation space is a premium.
The rugged and reliable ECT family of isolators/converters provides versatile choices to match the type of AC or DC power available at each location. ECT-DIN 2-wire Output-Loop powered models, 2-wire Input-Loop powered models, or 4-wire (Line/Mains) Powered Isolators/Converters and Splitters are also available. All units feature solid metal housings that stand up to the continuous, daily rigors of process control and factory automation applications, and have an optionally available externally-mounted flange that provides a secure mount which ensures secure installation in high vibration environments. The complete ECT family delivers extremely reliable signal isolation and conversion solutions for the most demanding ambient and noisy installation conditions.
