Process Gas and Liquid Analytical Systems: how it works, key numbers and troubleshooting
Fundamentals
In line, at line or in the laboratory
The first decision is where the measurement happens. An in-line analyser sits in the process and gives a continuous reading that a controller can act on. An at-line instrument takes a sample and answers within minutes, close enough to correct a batch. The laboratory gives the reference number hours later. Most plants need all three, and the argument is usually about which measurements have earned the move upstream.

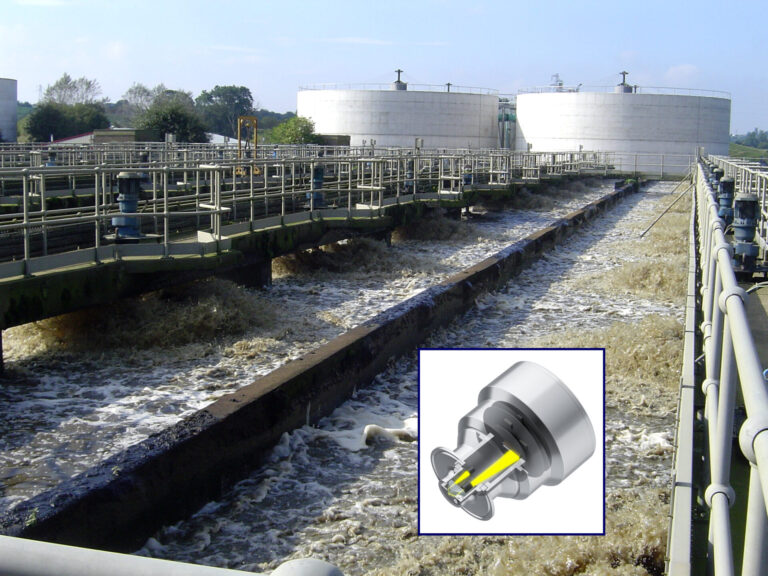

The classic electrochemical measurements
pH, conductivity, dissolved oxygen and ORP carry most of the water, wastewater and fermentation duties. They are cheap, well understood and they all drift, foul and age, which is why they live or die by a calibration routine. A pH electrode is a consumable with a working life measured in months, and treating it as a permanent instrument is the single most common mistake in this zone.
Optical and spectroscopic analysers
Near infrared, ultraviolet, Raman and photometric analysers read composition without touching the sample chemically. They measure many components at once, they respond in seconds, and they need a chemometric model that has to be built and maintained with reference data. The instrument rarely fails; the model quietly stops matching the product, which is why model maintenance belongs in the maintenance plan.
Gas analysis and chromatography
Oxygen, moisture, hydrocarbons and trace impurities are measured with paramagnetic, zirconia, tunable diode laser and chromatographic instruments. A process gas chromatograph gives a full composition every few minutes and is the reference for custody and for blending, at the price of carrier gas, columns and a specialist to keep it honest. Laser analysers measure across the duct without a sample line at all.
The sample system is the analyser
Most analyser problems live in the sample handling, not in the instrument. The line has to deliver a sample that is representative, fast enough to be useful, at the right pressure and temperature, and free of the phase changes that a pressure drop can cause. Lag time from tap to detector should be counted in seconds; where it runs to minutes, the control loop is measuring history.
Key parameters
| Parameter | Typical range | Rule of thumb |
|---|---|---|
| pH electrode life | 6 to 18 months in process duty | Treat it as a consumable and trend the slope and the offset at every calibration |
| pH calibration | Two point, slope 95 to 105 %, offset within 30 mV | A slope below 90 % means replacement, not another calibration |
| Conductivity cell constant | 0.1 for pure water, 1.0 general, 10 for concentrated | Pick the cell for the range; one cell will not cover pure water and brine |
| Dissolved oxygen response | Optical 30 to 60 s, amperometric 60 to 180 s | Optical sensors need no electrolyte and no membrane changes |
| Sample lag time | Under 60 s from tap to detector, under 10 s for control | Measure it with a step change; do not calculate it from the pipe volume |
| Sample flow | Fast loop 1 to 5 l/min with a slip stream to the analyser | A fast loop keeps the sample fresh without flooding the instrument |
| Gas chromatograph cycle | 2 to 10 minutes per analysis | The cycle time is the dead time of any loop that uses the result |
| NIR model maintenance | Validation samples every few months | Drift in the model looks exactly like drift in the process; only reference samples separate them |
Troubleshooting
| Symptom | Likely causes | What to do |
|---|---|---|
| pH reading drifts and responds slowly | Coated or dried out electrode, depleted reference, or a blocked junction | Clean by the product type, check the slope and offset against buffers, and replace if the slope has fallen below 90 % |
| Conductivity reads low on clean water | Wrong cell constant, air bubble on the electrode, or temperature compensation set for the wrong solution | Match the cell to the range, mount so bubbles cannot lodge, and select the right compensation curve |
| Analyser and laboratory disagree | Unrepresentative sample point, lag time, or a difference in temperature and pressure at the two measurements | Take the grab sample at the analyser tap at the same moment, and compare like for like before adjusting anything |
| Dissolved oxygen reads high after cleaning | Air trapped at the sensor face or a membrane not yet settled | Purge the fitting, allow the polarisation or settling time in the manual, then verify in air and in a zero solution |
| Optical analyser output drifts over months | Window fouling, lamp ageing, or a chemometric model that no longer matches the feedstock | Clean and check the window, run the internal reference, then test against fresh laboratory samples before touching the model |
| Chromatograph peaks shift or tail | Carrier gas pressure change, a leaking septum, or a column reaching the end of its life | Leak-test the sample and carrier path, check the carrier pressure and flow, and bake or replace the column |
| Sample line blocks repeatedly | Condensation, crystallisation from a pressure drop, or particulate that the filter should have caught | Trace and insulate the line, move the pressure reduction as close to the tap as possible, and fit the right filtration for the duty |
